RF & Microwave Evaluation Boards

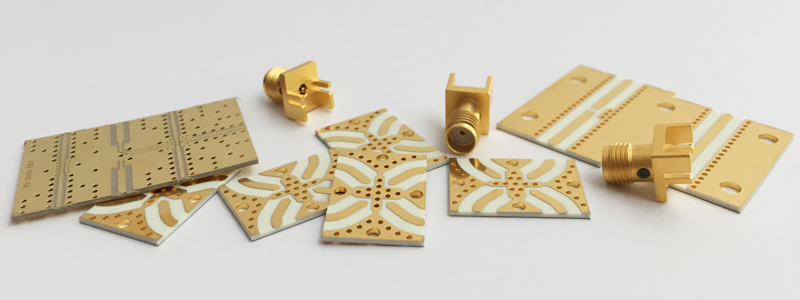

ELECTRO-PHOTONICS LLC designs RF & Microwave evaluation boards for testing various passive and active components. We use our extensive RF & Microwave design experience, combined with carefully selected materials, to create RF & Microwave eval boards with excellent performance at affordable prices.

722-0004-01-E02
722-0004-01-E02

RF/Microwave Evaluation Board

This high performance evaluation board allows quick and convenient method of characterizing standard 0402 inductors, capacitors, and resistors. Save valuable time and speed up your design cycle by quickly evaluating any passive SMT device in standard 0402 footprint.

Highlights

  • Measure: Resistors, Terminations, Capacitors, Inductors
  • High Performance DC-10 GHz
  • Low Insertion Loss (1.0 dB @ 10 GHz)
  • Low VSWR (1.35:1)
  • Includes 4x High Performance SMA
  • Includes Short, Open, Shunt, Thru
Datasheet
722-0002-02-E01
722-0002-02-E01

RF/Microwave Evaluation Boards

The 722-0002-02-E01 is a high performance RF/Microwave evaluation board for a 2-port surface mount device. A thru line is designed into the board for quick de-embedding of line losses. This board is compatible with many component manufacturers’ chips.

Highlights

  • Measure: Attenuators, Resistors, Terminations, Capacitors, Inductors
  • High Performance DC-14 GHz
  • Low Insertion Loss (.7 dB @ 14 GHz)
  • Low VSWR (1.20:1)
  • Accommodates up to .150 x .125 Chip
  • Includes 4x High Performance SMA
  • Thru Line for Loss Removal
Datasheet
722-0005-01-E01
722-0005-01-E01

RF/Microwave Evaluation Board

This high performance RF/MW evaluation board is for a 3-port device up to .075 x .050 size. Each board comes with three high performance end launch connectors that are easy to assemble. In addition, this board is solderable and wire bondable. A DC feed line is provided for biasing and a thru is also provided for quick de-embedding.

Highlights

  • Measure: 0.75 x .050 Die/Chip
  • High Performance DC-12.4 GHz
  • Low Insertion Loss (0.7 dB @ 12.4 GHz)
  • Low VSWR (1.20:1)
  • 3x RF Ports / 2x DC Ports
  • Wire Bondable and Solderable
  • Thru Line for Quick De-embedding
  • Includes 3x High Performance SMA
Datasheet
722-0005-02-E01
722-0005-02-E01

RF/Microwave Evaluation Board

This high performance RF/MW evaluation board is for a 3-port device up to .040 x .040 size. Each board comes with three high performance end launch connectors that are easy to assemble. In addition, this board is solderable and wire bondable. A DC feed line is provided for biasing and a thru is also provided for quick de-embedding.

Highlights

  • Measure: 0.40 x .040 Die/Chip
  • High Performance DC-12.4 GHz
  • Low Insertion Loss (0.7 dB @ 12.4 GHz)
  • Low VSWR (1.20:1)
  • 3x RF Ports / 2x DC Ports
  • Wire Bondable and Solderable
  • Thru Line for Quick De-embedding
  • Includes 3x High Performance SMA
Datasheet
722-0005-03-E01
722-0005-03-E01

RF/Microwave Evaluation Board

This high performance RF/MW evaluation board is for a 3-port device up to .050 x .050 size. Each board comes with three high performance end launch connectors that are easy to assemble. In addition, this board is solderable and wire bondable. A DC feed line is provided for biasing and a thru is also provided for quick de-embedding.

Highlights

  • Measure: 0.50 x .050 Die/Chip
  • High Performance DC-12.4 GHz
  • Low Insertion Loss (0.7 dB @ 12.4 GHz)
  • Low VSWR (1.20:1)
  • 3x RF Ports / 2x DC Ports
  • Wire Bondable and Solderable
  • Thru Line for Quick De-embedding
  • Includes 3x High Performance SMA
Datasheet
722-0006-01-E01
722-0006-01-E01

RF/Microwave Evaluation Board

This high performance RF/MW evaluation board for SMD .250 x .200 couplers comes with four high performance end launch connectors that are easy to assemble. This board is compatible with many manufacturers’ SMD couplers. Save design time and high cost of building a whole panel.

Highlights

  • Measure: .250 x .200 SMD Couplers
  • High Performance DC-14 GHz
  • Low Insertion Loss (0.3 dB @ 7 GHz)
  • Low VSWR (1.05:1)
  • Includes 4x High Performance SMA
Datasheet
722-0006-02-E01
722-0006-02-E01

RF/Microwave Evaluation Board

This high performance RF/MW evaluation board for SMD .560 x .200 couplers comes with four high performance end launch connectors that are easy to assemble. This board is compatible with many manufacturers’ SMD couplers. Save design time and high cost of building a whole panel.

Highlights

  • Measure: .560 x .200 SMD Couplers
  • High Performance DC-14 GHz
  • Low Insertion Loss (0.3 dB @ 7 GHz)
  • Low VSWR (1.05:1)
  • Includes 4x High Performance SMA
Datasheet
722-0006-03-E01
722-0006-03-E01

RF/Microwave Evaluation Board

This high performance RF/MW evaluation board for SMD .560 x .350 couplers comes with four high performance end launch connectors that are easy to assemble. This board is compatible with many manufacturers’ SMD couplers. Save design time and high cost of building a whole panel.

Highlights

  • Measure: .560 x .350 SMD Couplers
  • High Performance DC-14 GHz
  • Low Insertion Loss (0.3 dB @ 7 GHz)
  • Low VSWR (1.05:1)
  • Includes 4x High Performance SMA
Datasheet
722-0006-04-E01
722-0006-04-E01

RF/Microwave Evaluation Board

This high performance RF/MW evaluation board for SMD .650 x .480 couplers comes with four high performance end launch connectors that are easy to assemble. This board is compatible with many manufacturers’ SMD couplers. Save design time and high cost of building a whole panel.

Highlights

  • Measure: .650 x .480 SMD Couplers
  • High Performance DC-14 GHz
  • Low Insertion Loss (0.3 dB @ 7 GHz)
  • Low VSWR (1.05:1)
  • Includes 4x High Performance SMA
Datasheet
722-0006-05-E01
722-0006-05-E01

RF/Microwave Evaluation Board

This high performance RF/MW evaluation board for SMD 1.00 x .500 couplers comes with four high performance end launch connectors that are easy to assemble. This board is compatible with many manufacturers’ SMD couplers. Save design time and high cost of building a whole panel.

Highlights

  • Measure: 1.00 x .500 SMD Couplers
  • High Performance DC-14 GHz
  • Low Insertion Loss (0.3 dB @ 7 GHz)
  • Low VSWR (1.05:1)
  • Includes 4x High Performance SMA
Datasheet
722-0006-06-E01
722-0006-06-E01

RF/Microwave Evaluation Board

This high performance RF/MW evaluation board for SMD 1.00 x 1.00 couplers comes with four high performance end launch connectors that are easy to assemble. This board is compatible with many manufacturers’ SMD couplers. Save design time and high cost of building a whole panel.

Highlights

  • Measure: 1.00 x1.00 SMD Couplers
  • High Performance DC-14 GHz
  • Low Insertion Loss (0.3 dB @ 7 GHz)
  • Low VSWR (1.05:1)
  • Includes 4x High Performance SMA
Datasheet
722-0006-07-E01
722-0006-07-E01

RF/Microwave Evaluation Board

This high performance RF/MW evaluation board for SMD 0.283 x 0.197 couplers comes with four high performance end launch connectors that are easy to assemble. This board is compatible with many manufacturers’ SMD couplers. Save design time and high cost of building a whole panel.

Highlights

  • Measure: 0.283 x 0.197 SMD Couplers
  • High Performance DC-14 GHz
  • Low Insertion Loss (0.3 dB @ 7 GHz)
  • Low VSWR (1.05:1)
  • Includes 4x High Performance SMA
Datasheet
722-0006-08-E01
722-0006-08-E01

RF/Microwave Evaluation Board

This high performance RF/MW evaluation board for SMT 1.00 x 0.50 couplers comes with four high performance end launch connectors that are easy to assemble. This board is compatible with many manufacturers’ SMT couplers. Save design time and high cost of building a whole panel.

Highlights

  • Measure: 1.0 x 0.5 SMT Couplers
  • High Performance DC-6 GHz
  • Low Insertion Loss (0.5 dB @ 6 GHz)
  • Low VSWR (1.25:1)
  • Includes 4x High Performance SMA
Datasheet
