High Power RF & Microwave Flangeless Terminations
General Specifications
§ Standard Resistance: 50 Ohms ± 5%
§ Frequency: DC – 12 GHz
§ Substrate Material: BeO (Beryllium Oxide), AlN (Aluminum Nitride)
§ Resistive Film: Thick Film
§ Power up to 800 W CW
Lead-Free, RoHS certified
If you don’t see what you’re looking for, please email us at alen@electro-photonics.com and we may be able to help you.
| Product Image | Part Number | Frequency (GHz) | Power (W) | VSWR | Impedance (Ω) ± 5% | Dimensions inch | Dimensions mm | Datasheet |
|---|---|---|---|---|---|---|---|---|

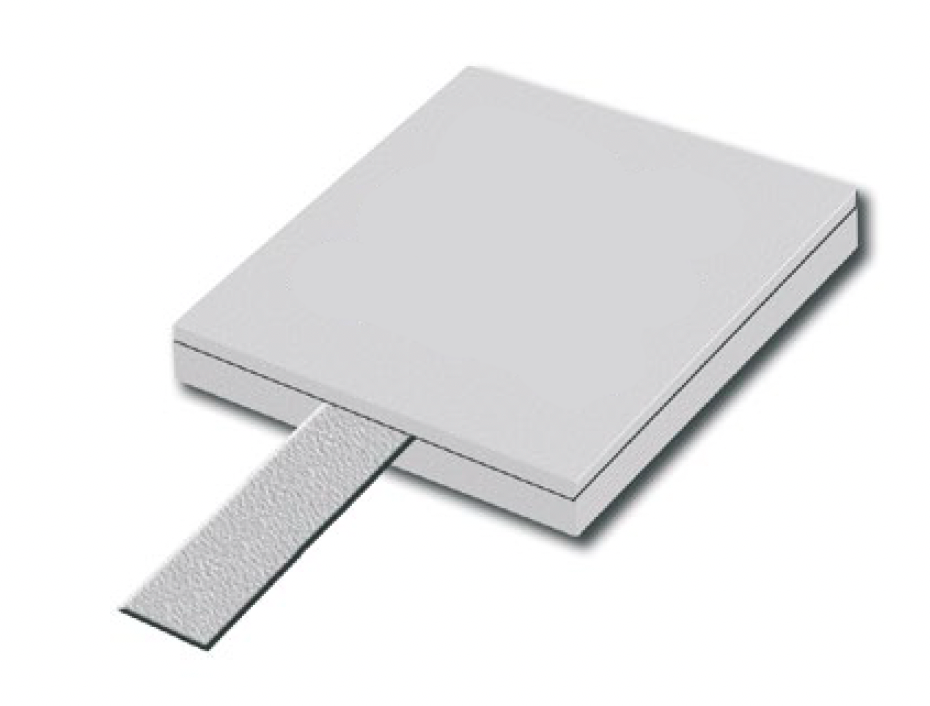

| EPFLT-B250-50-5 | 3 | 250 | 1.25 | 50 | 0.370 x 0.370 x 0.083 | 9.4 x 9.4 x 2.1 | |

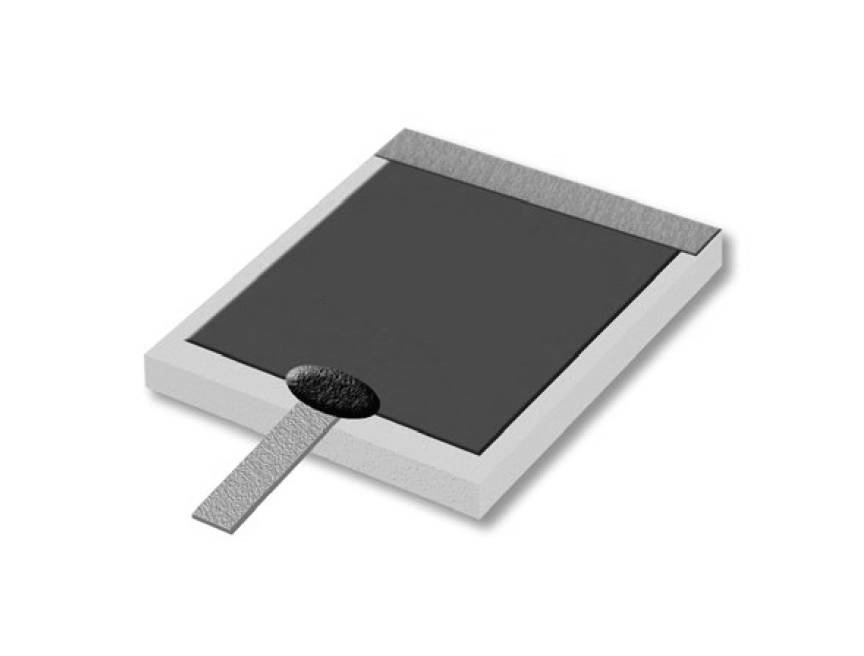

| EPFLT-B500-50-5 | 4 | 500 | 1.2 | 50 | 0.500 x 0.500 x 0.098 | 12.7 x 12.7 x 2.5 | |

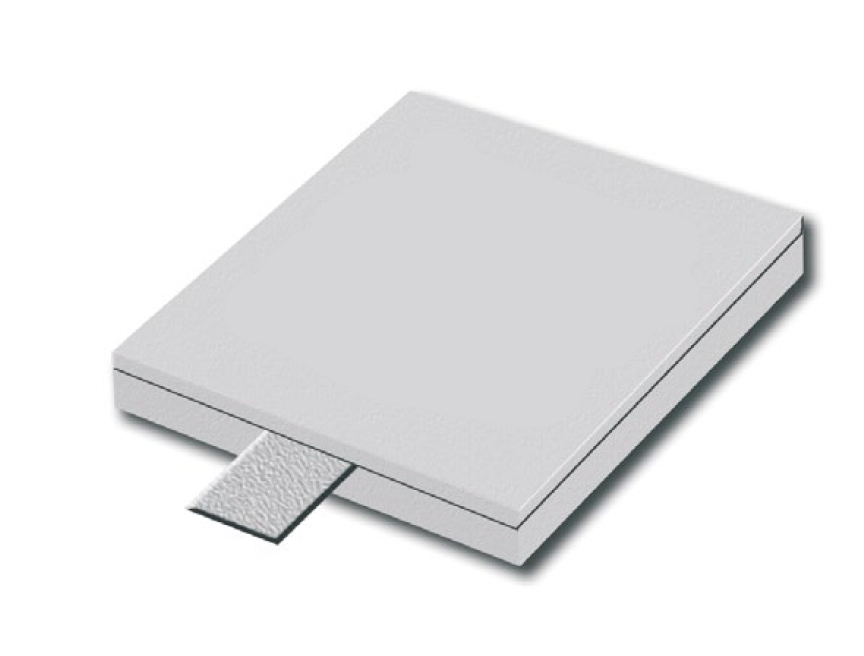

| EPFLT-B800-50-5 | 1 | 800 | 1.2 | 50 | 1.00 x 1.00 x 0.106 | 25.4 x 25.4 2.7 | |

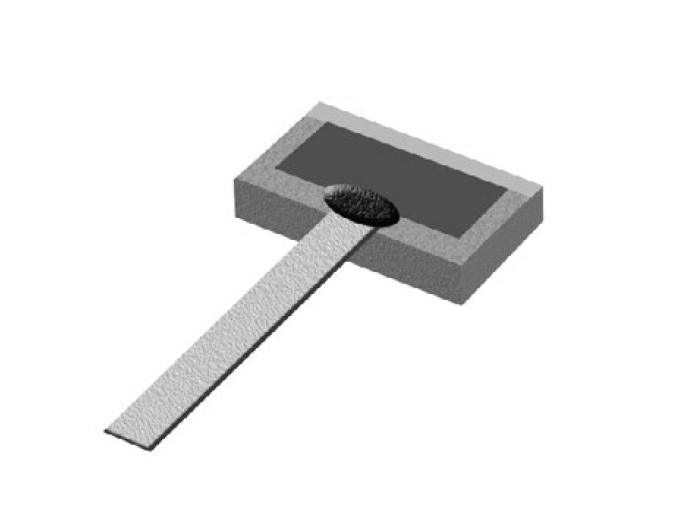

| EPFLT-N10-50-5 | 12 | 10 | 1.35 | 50 | 0.100 x 0.200 x 0.028 | 2.54 x 5.08 x 0.7 | |

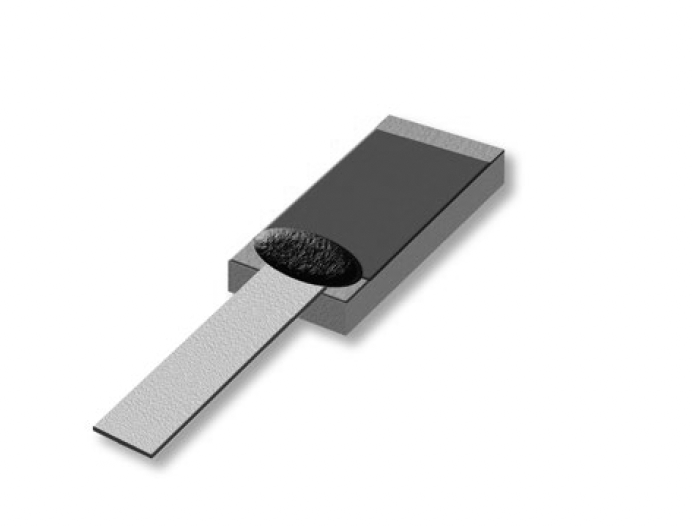

| EPFLT-N25-50-5 | 4 | 25 | 1.2 | 50 | 0.200 x 0.100 x 0.025 | 5.08 x 2.54 x 0.635 | |

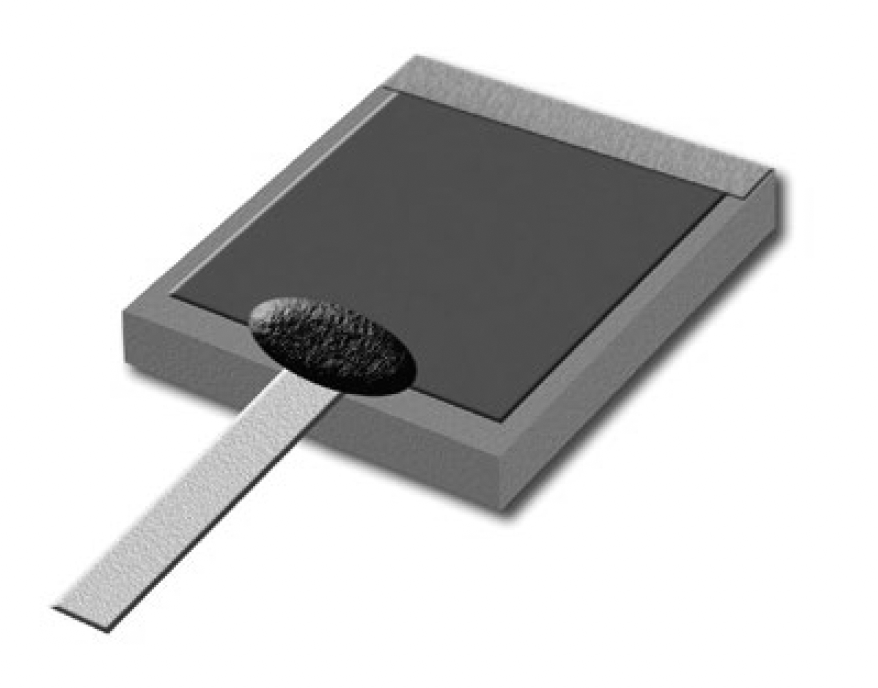

| EPFLT-N100-50-5 | 4 | 100 | 1.25 | 50 | 0.250 x 0.250 x 0.059 | 6.35 6.35 x 1.5 | |

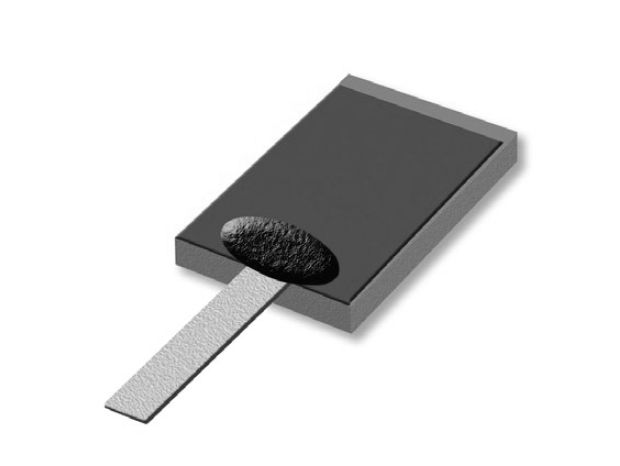

| EPFLT-N150-50-5 | 4 | 150 | 1.2 | 50 | 0.370 x 0.250 x 0.047 | 9.4 x 6.35 x 1.2 | |
